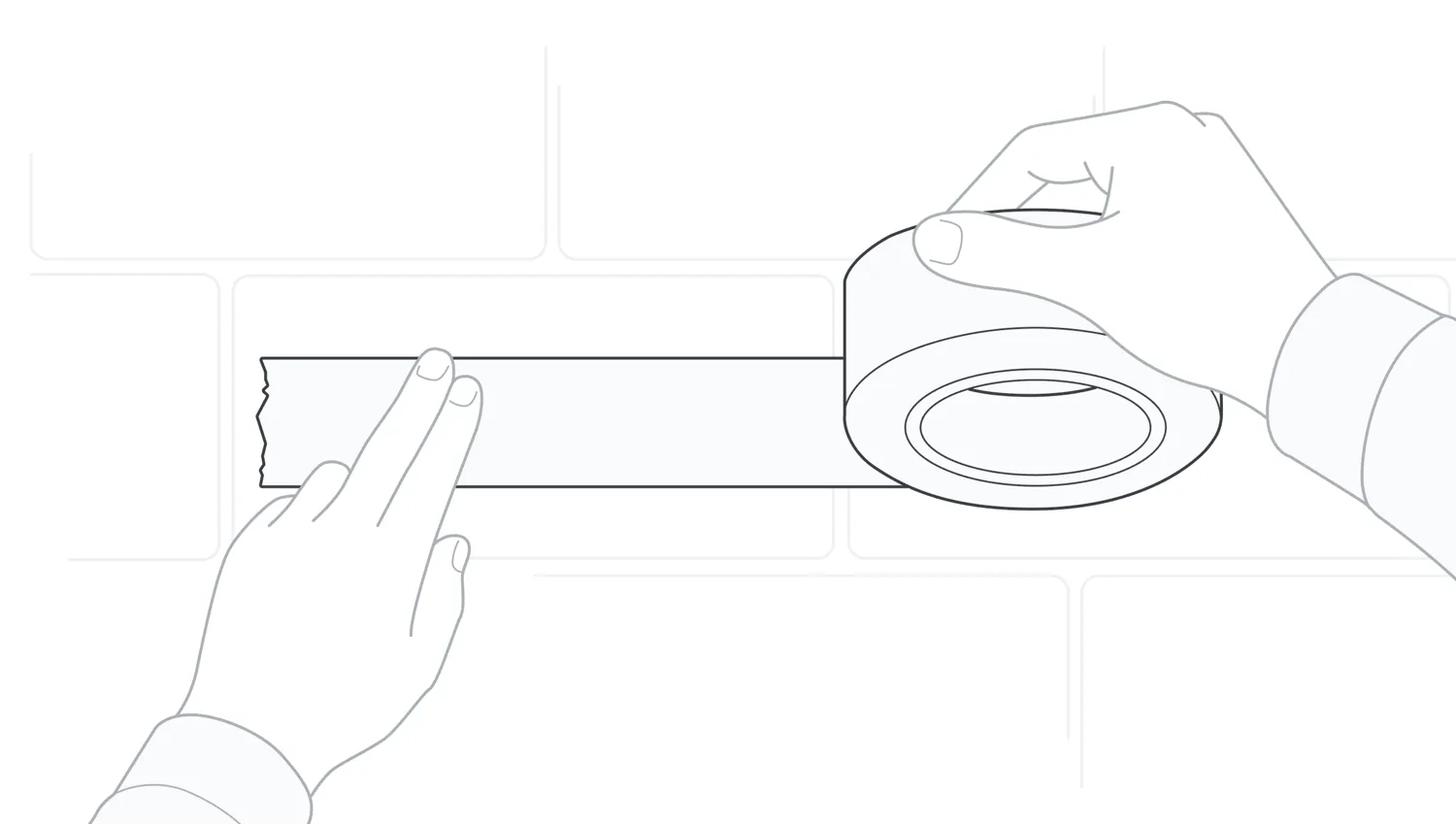

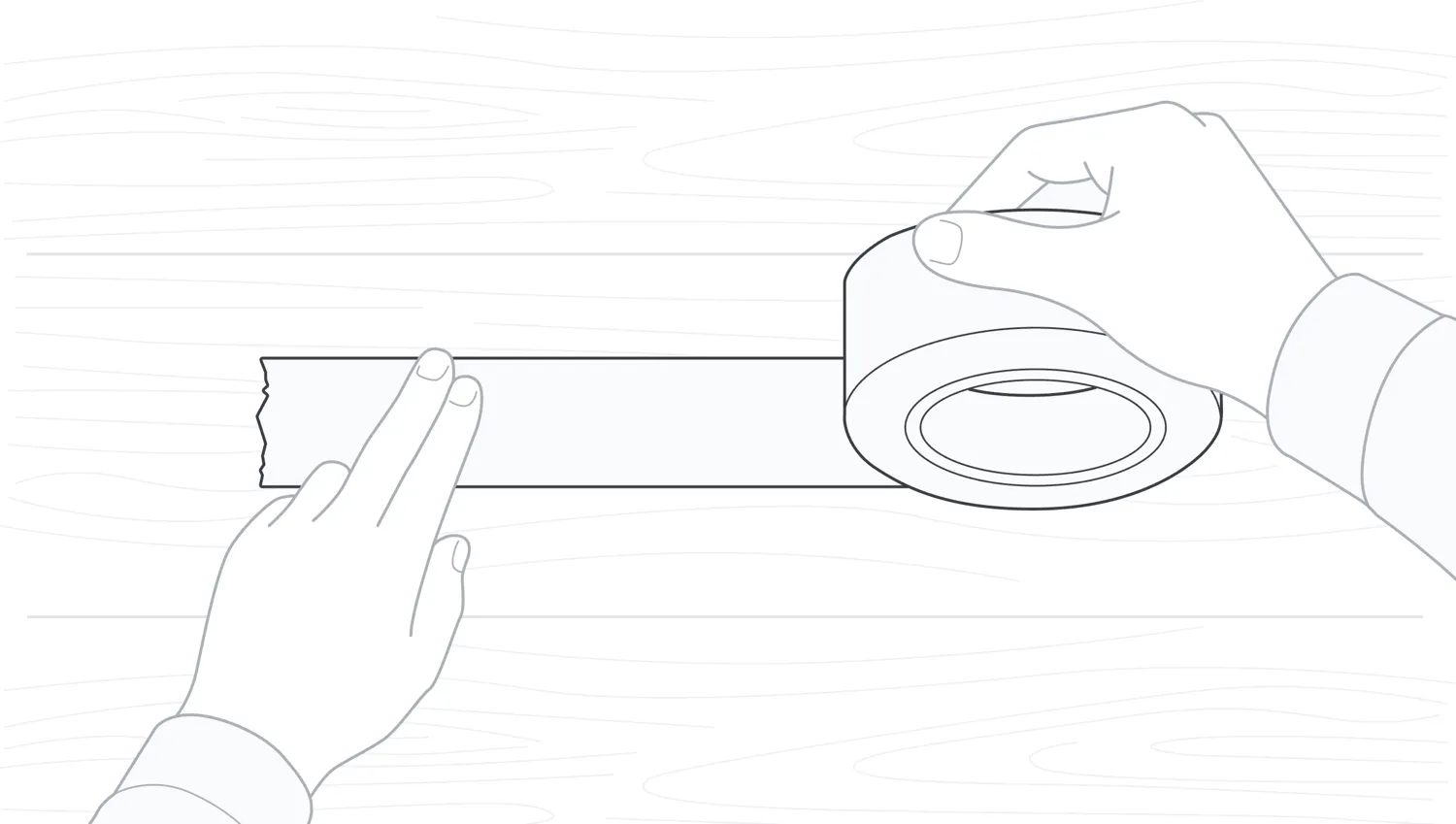

(Optional) To protect the wall, place masking tape over the area where you’ll screw in the mount.

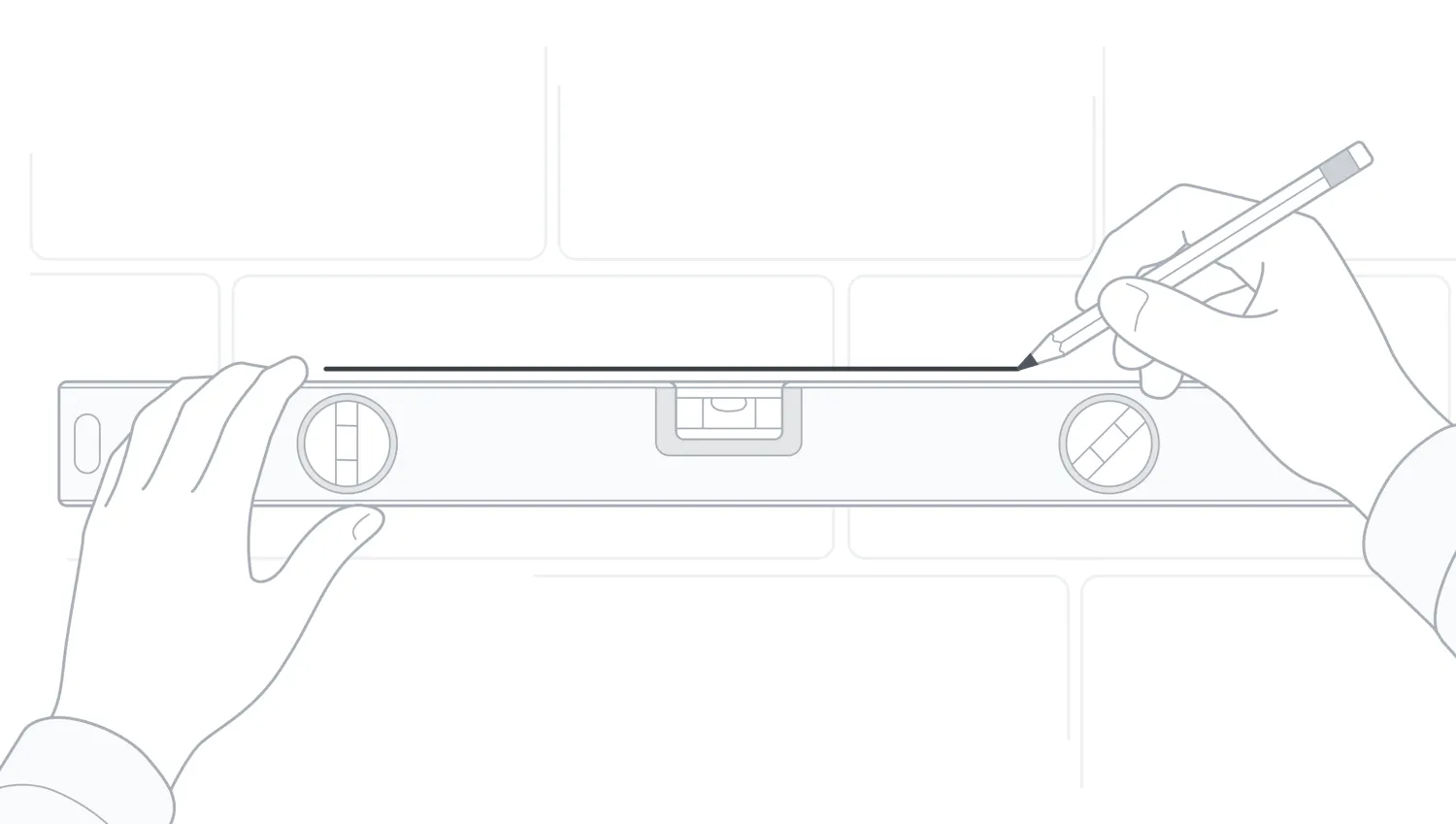

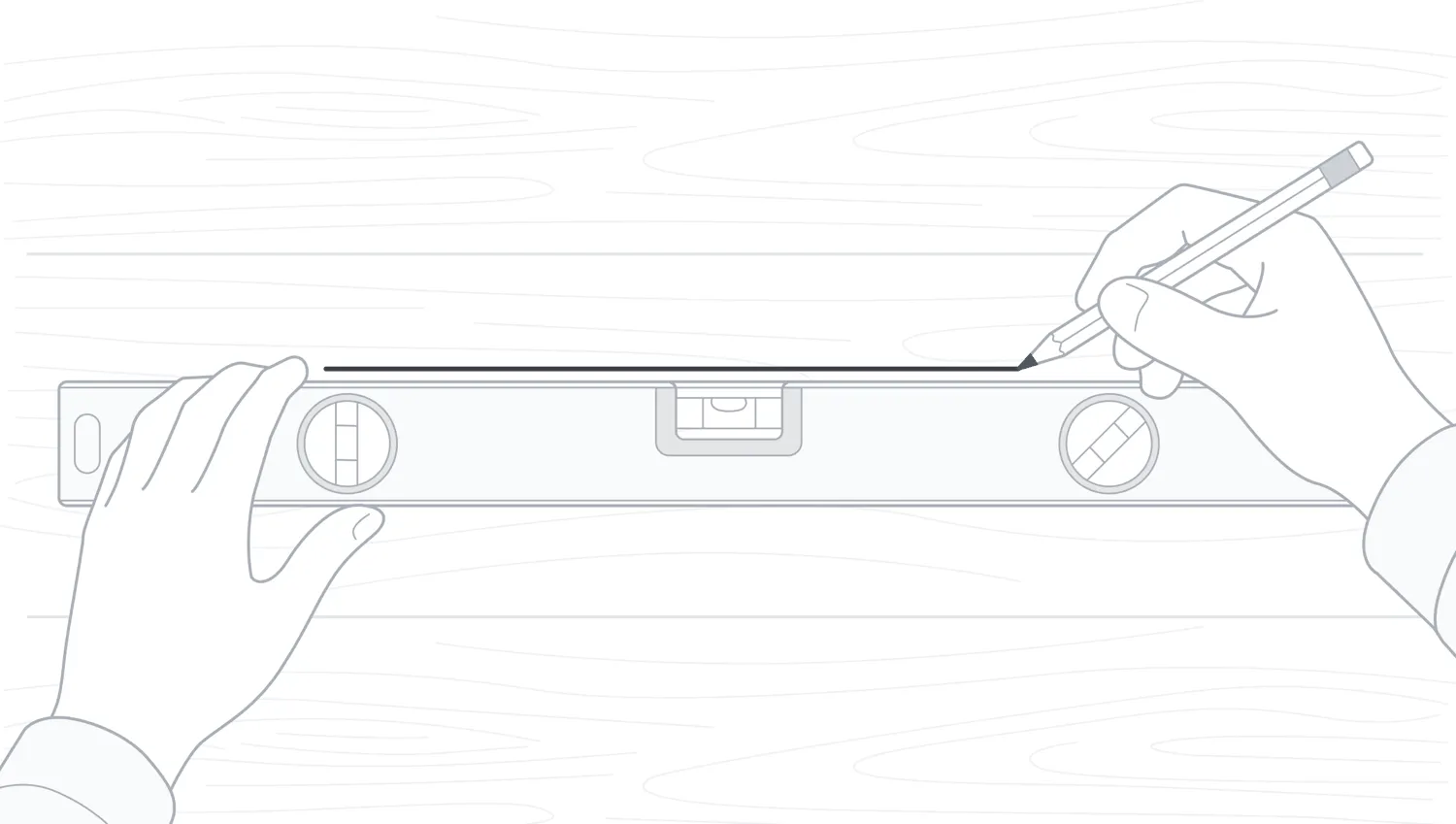

Draw a horizontal line using a level.

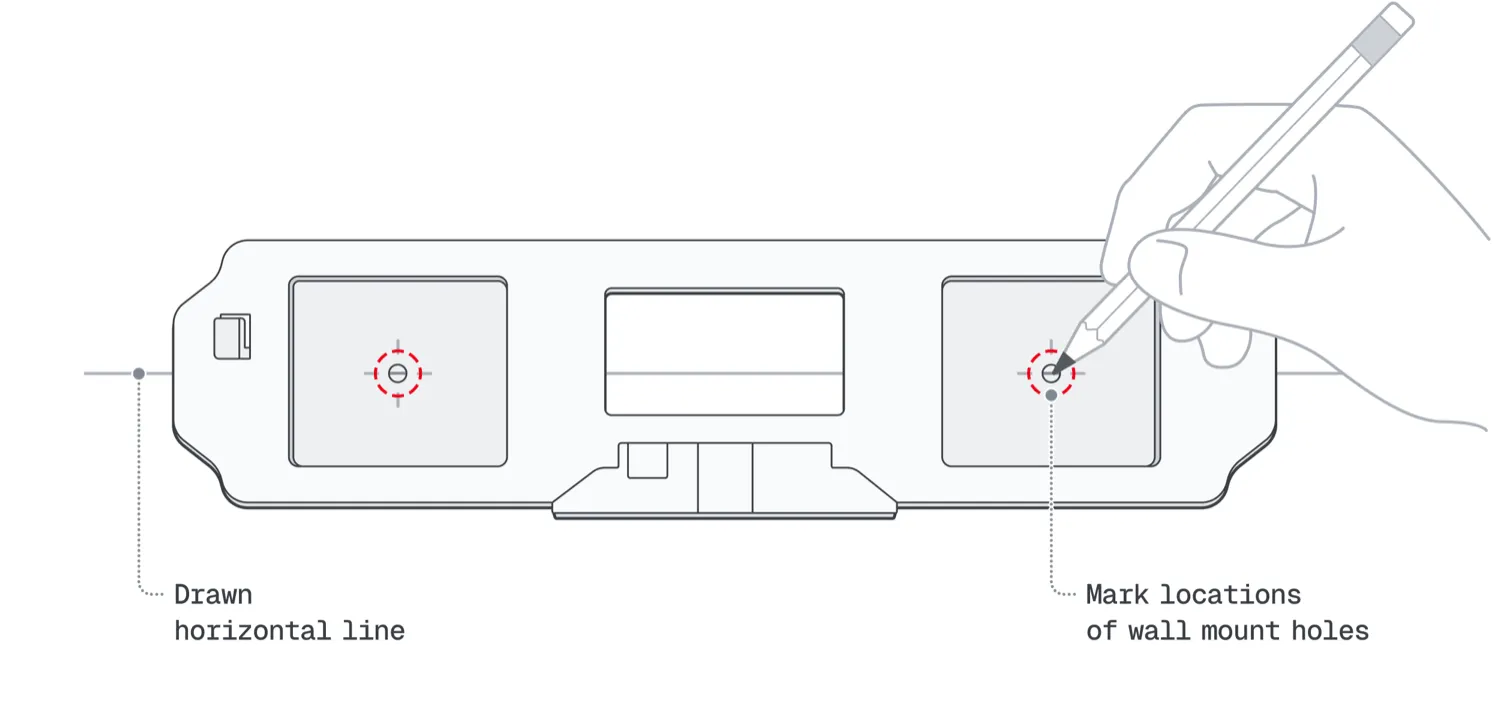

Align the wall mount holes with the drawn line and mark the location of the wall mount holes.

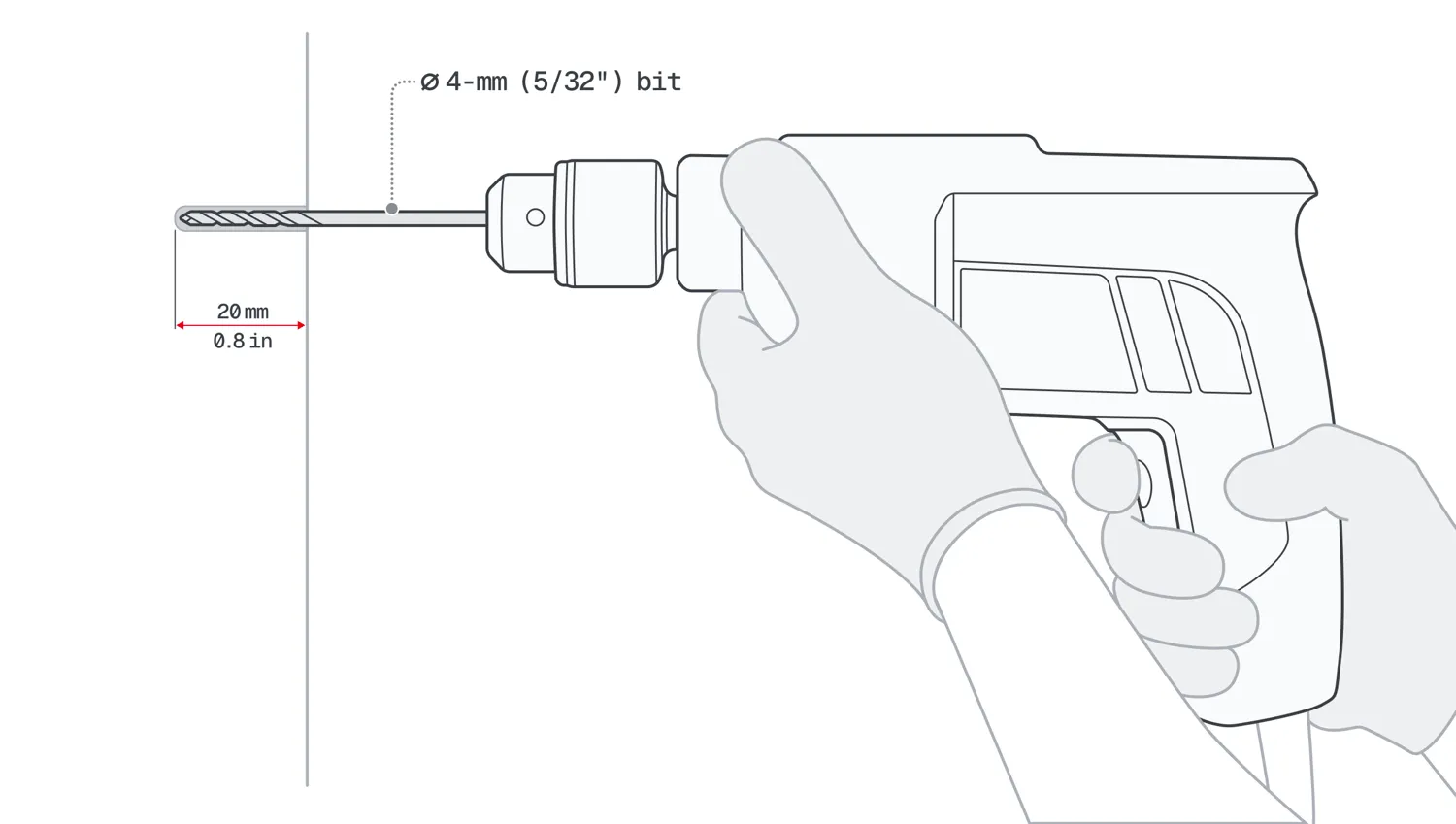

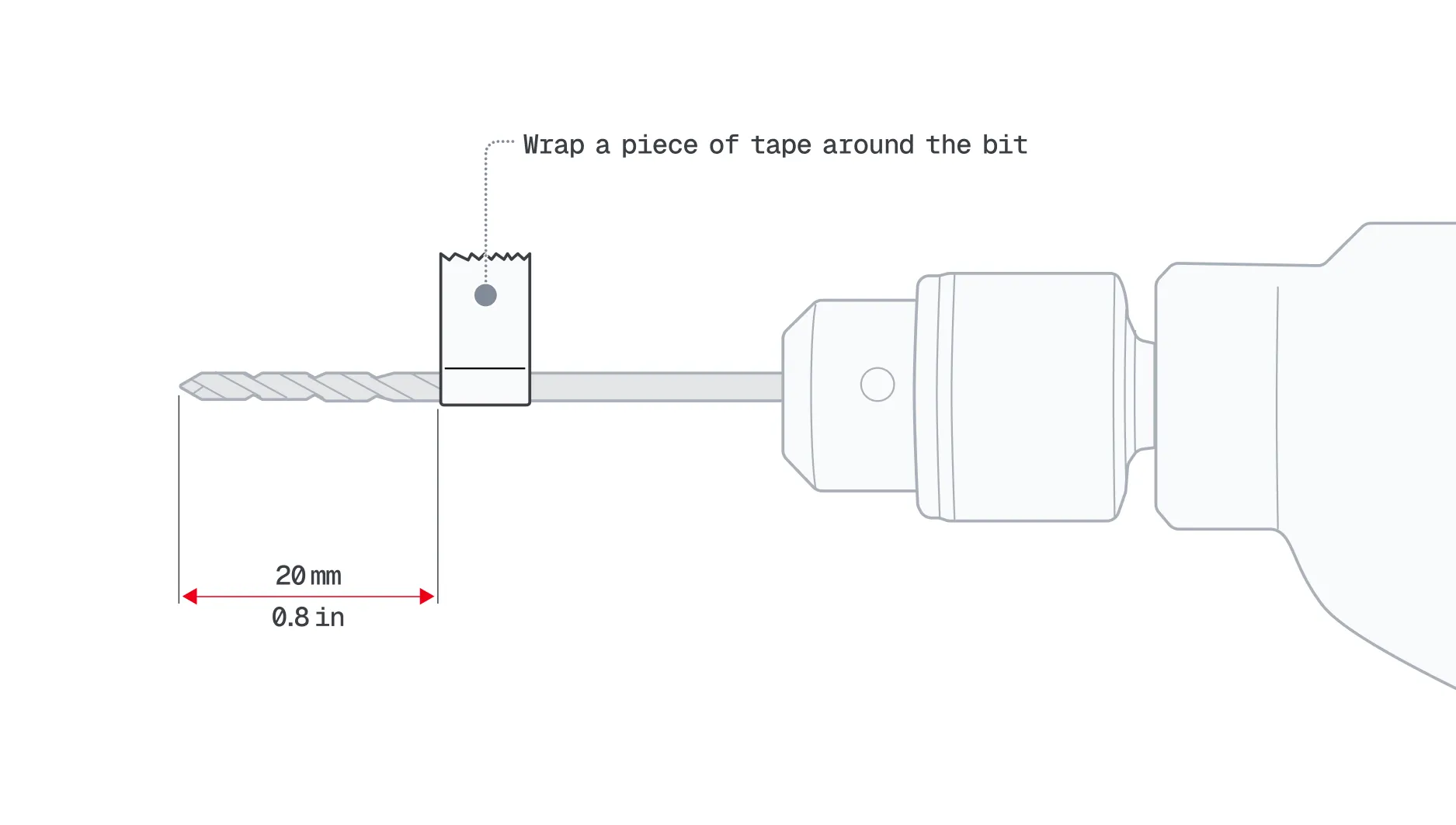

Drill two holes in the marked areas using a drill with a 4-mm (5/32") bit. The hole depth should be at least 20 mm (0.8 in).

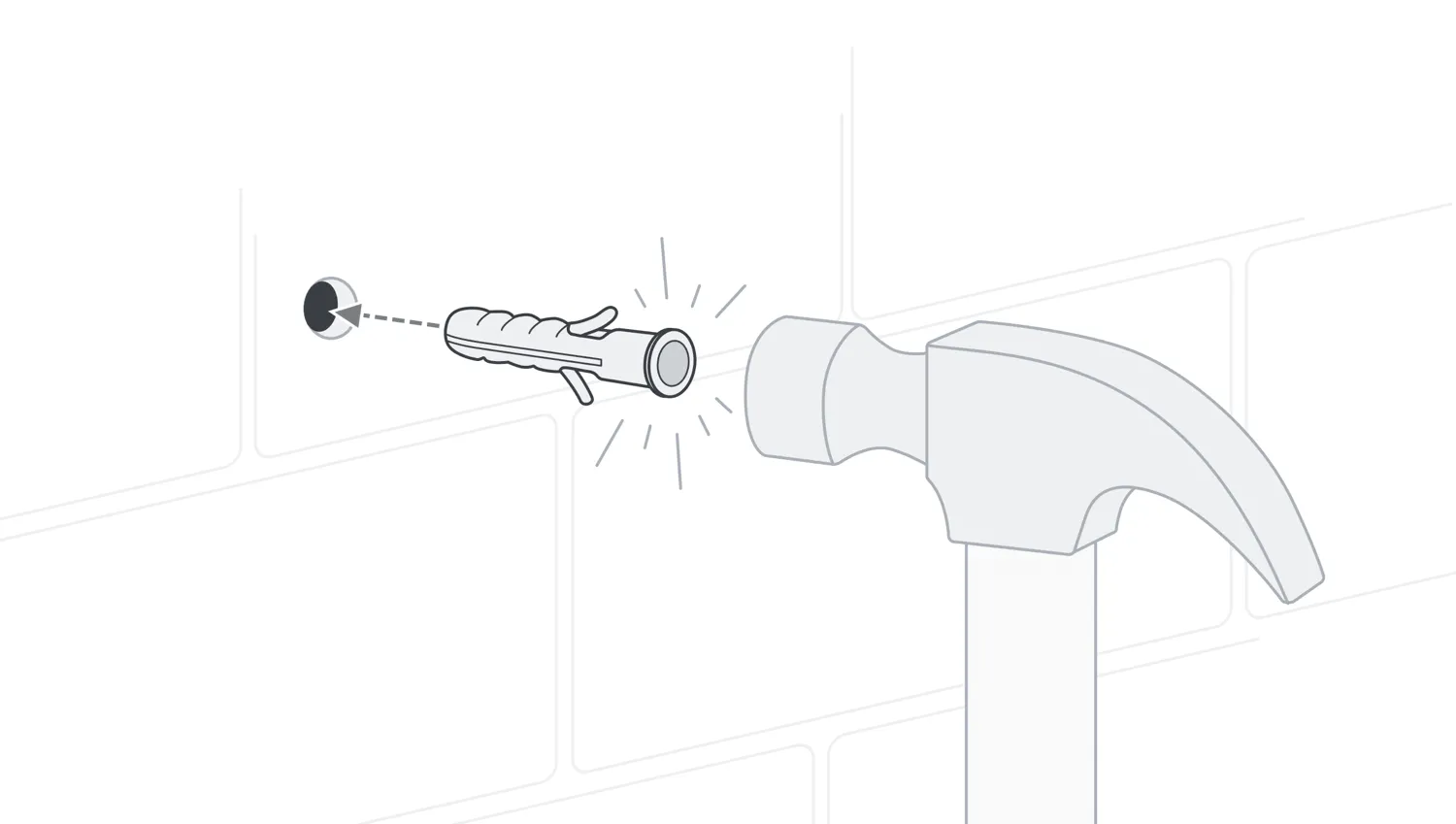

Insert the two provided wall plugs into the drilled holes.

(Optional) Remove the masking tape, if used.

(Optional) To protect the wall, place masking tape over the area where you’ll screw in the mount.

Draw a horizontal line using a level.

Align the wall mount holes with the drawn line and mark the location of the wall mount holes.

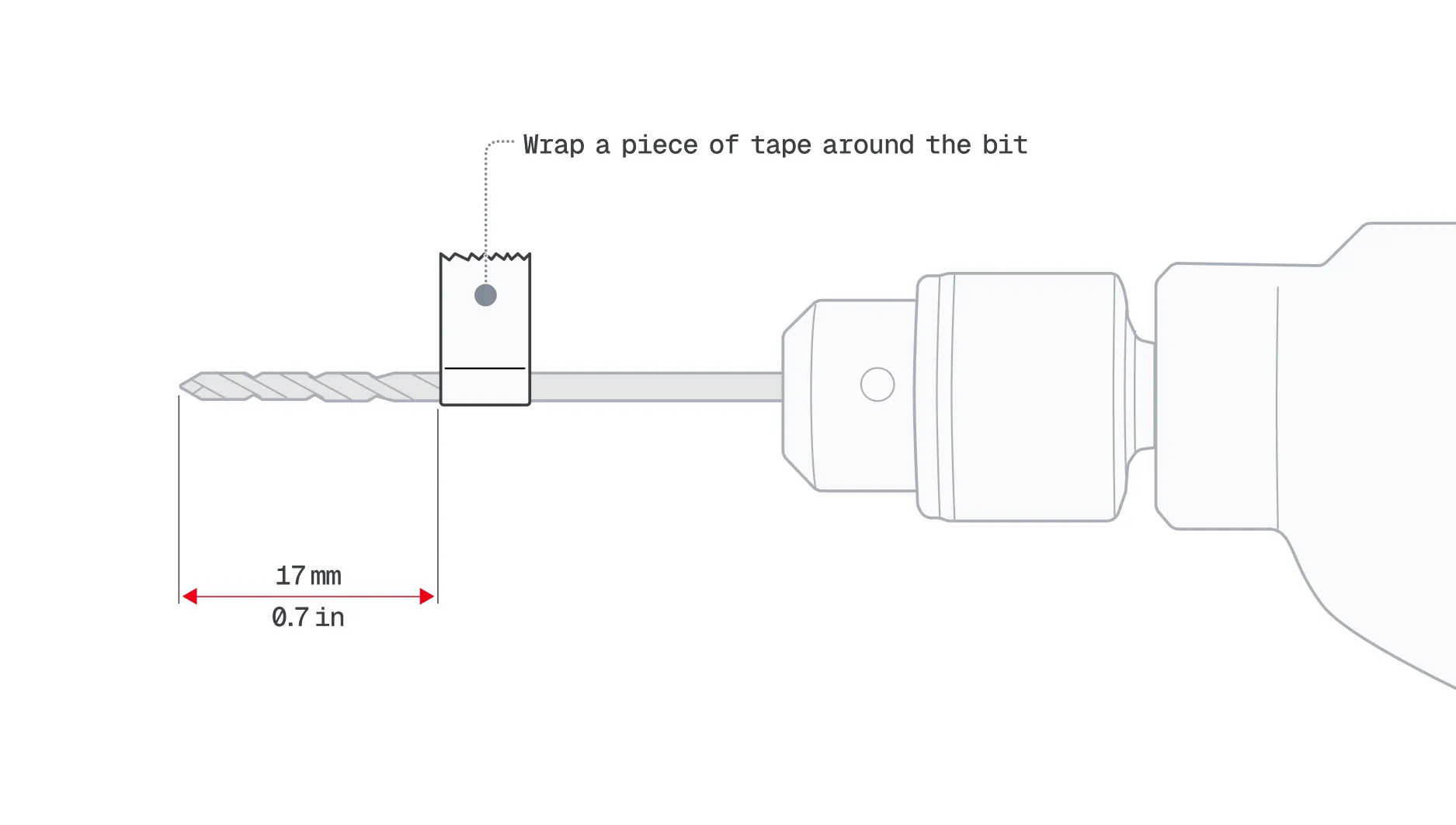

Drill two holes in the marked areas using a drill with a 2-mm (5/64") bit. The hole depth should be at least 17 mm (0.7 in).



(Optional) Remove the masking tape, if used.

Clean the back of the wall mount with rubbing alcohol, then let it dry.

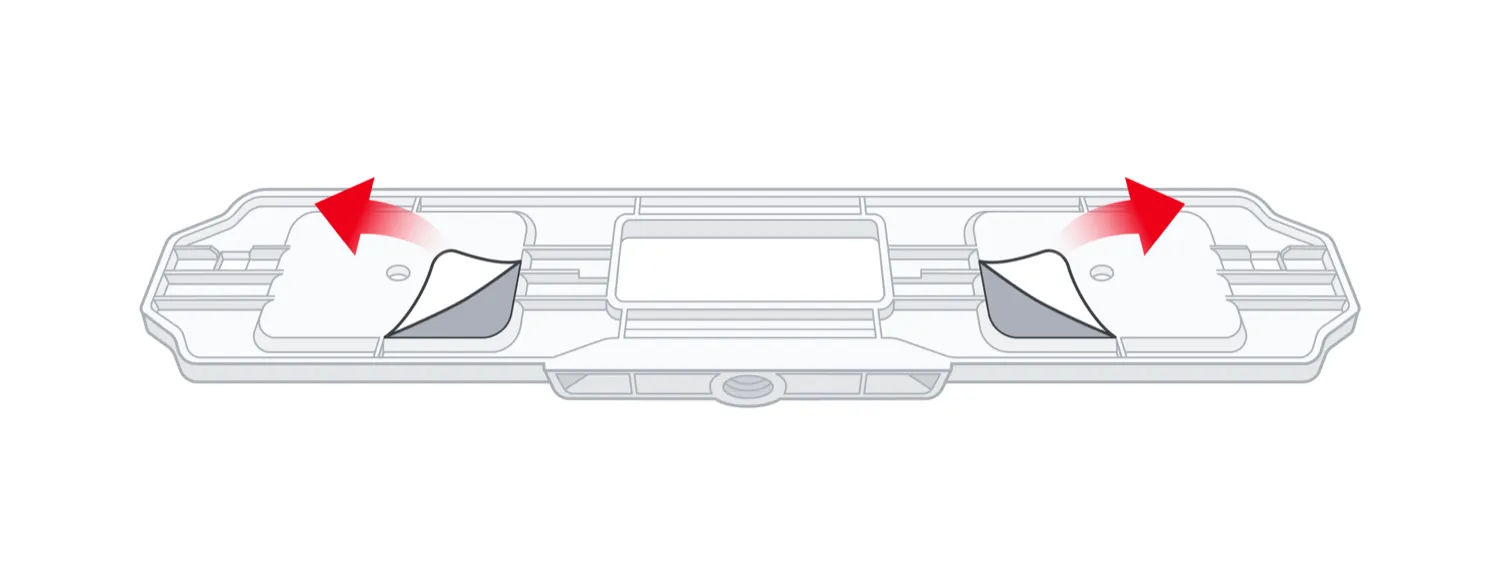

Peel off the backing paper from one side of the double-sided tape pads.

Clean the surface with rubbing alcohol and let it dry.

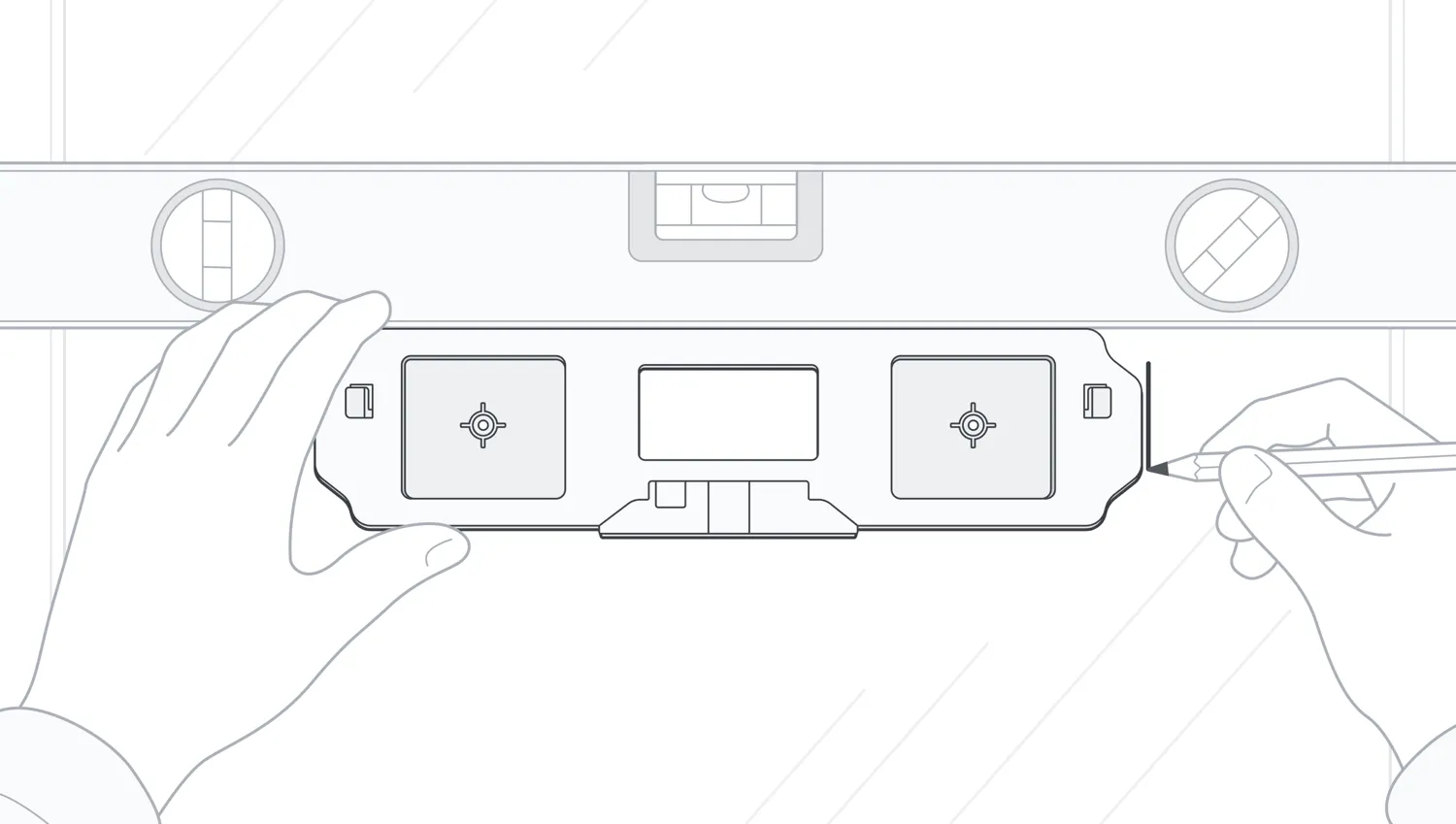

(Optional) Hold the wall mount in place, level it horizontally using a level (or a phone level), then mark the position with a temporary marker.

Peel off the backing paper from the double-sided tape pads on the wall mount in two places.

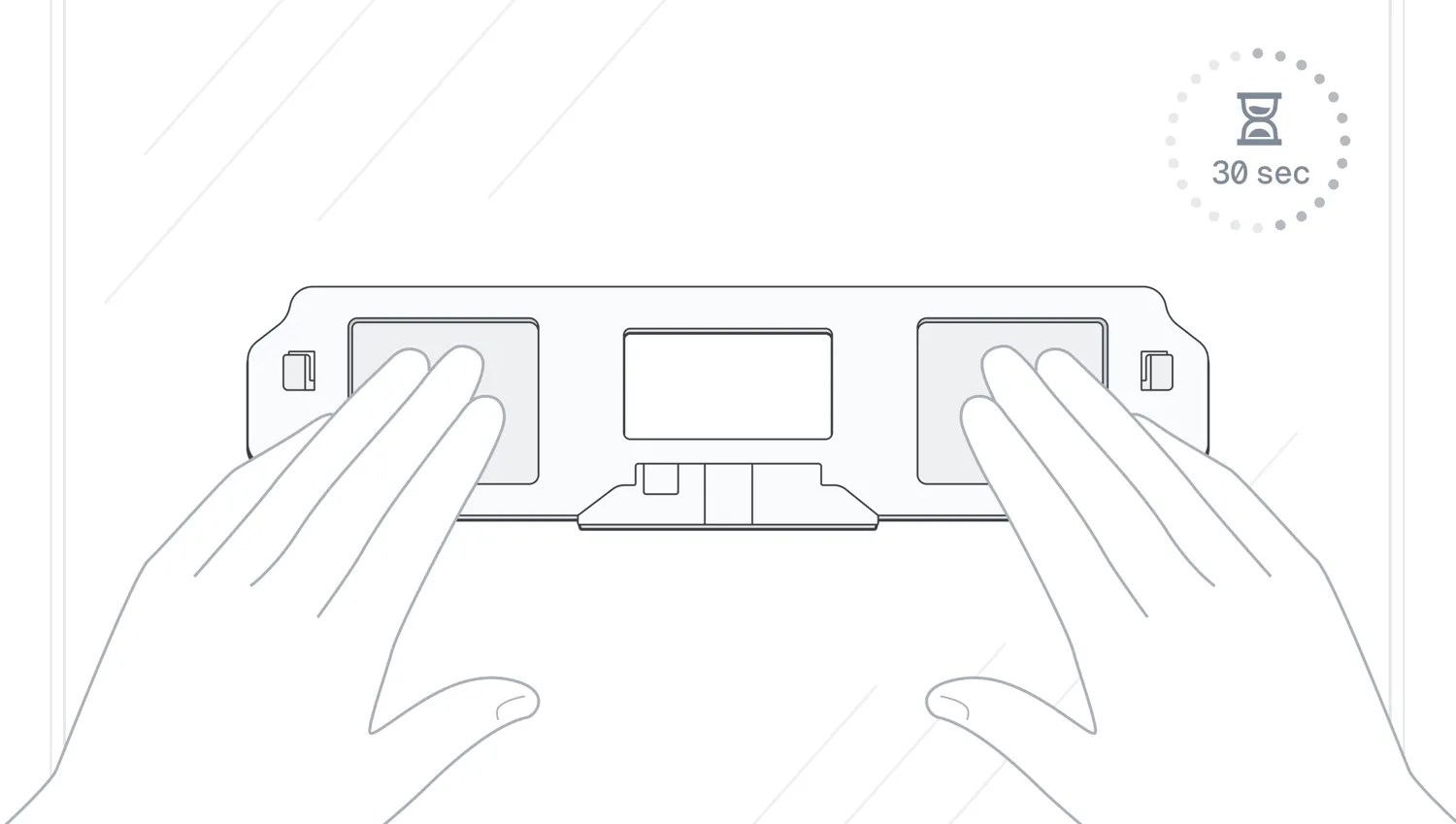

Press down the wall mount against the wall in the marked area for 30 seconds to ensure maximum adhesion.

(Optional) Wipe off any drawn outline with a cloth, if drawn.
